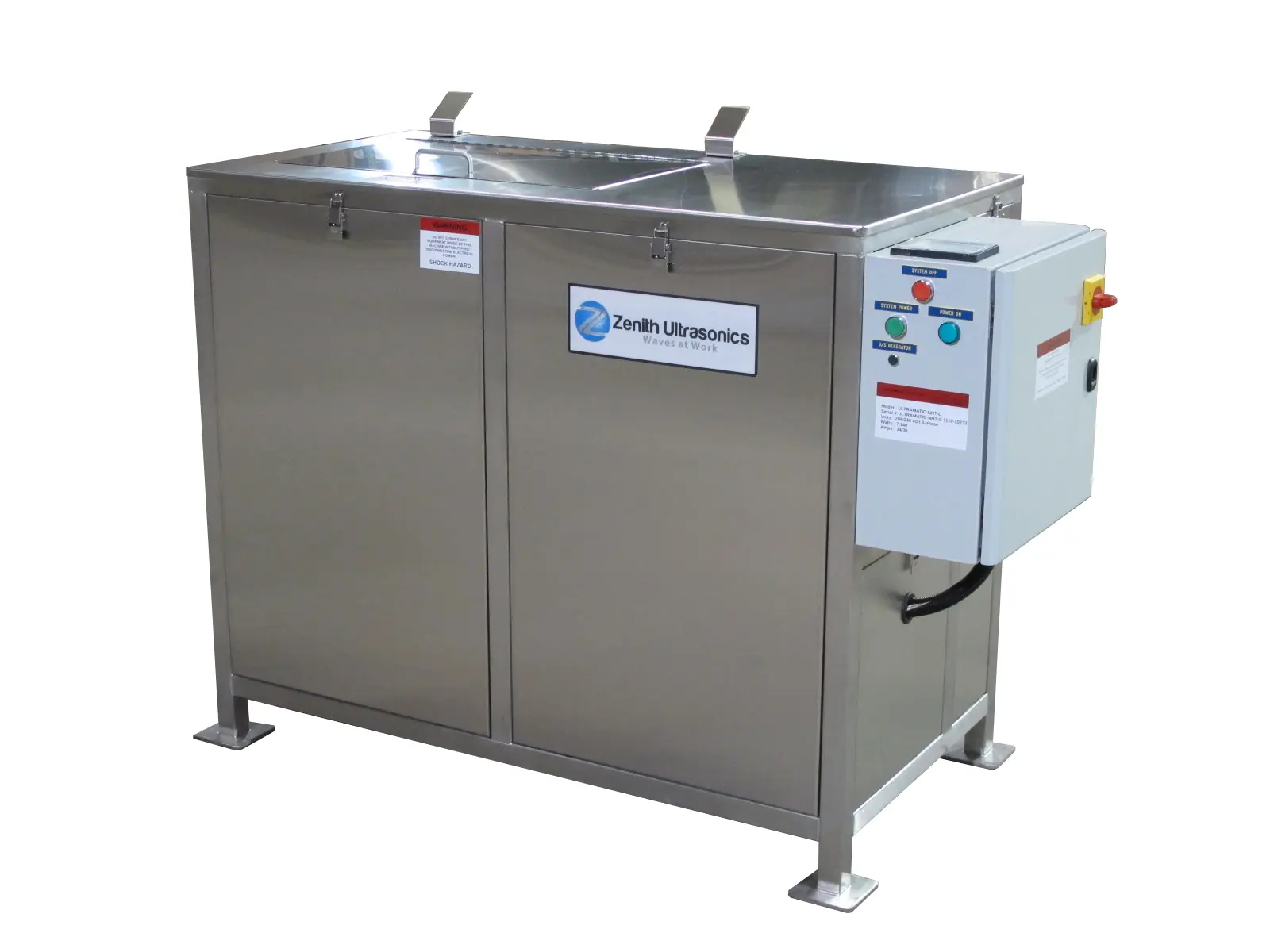

Ultramatic NHT
Low-cost Automated Ultrasonic Cleaning System
The Ultramatic NHT is a one-tank automated ultrasonic cleaning machine that cleans, rinses, and dries parts in a single ultrasonically-activated tank. Cleaning fluids are not re-used in this cleaning system, and each batch of parts is processed in fresh cleaning and rinsing fluids. This machine is perfect for:
- Medical applications which require that fresh solutions be used for each batch of parts.
- Low volume applications: This system cannot process parts as quickly as our other automated ultrasonic cleaners.
- Facilities where water consumption is not a concern.
The tank is first filled with cleaning fluid and the ultrasonic system is activated to clean parts. Cleaning fluid is drained thereafter and spray and ultrasonic submersion rinsing follows to remove all detergents. After the rinsing fluid has been drained, the drying system is activated to dry parts prior to removal.
Made in the USA
Custom Engineered Solution
Comprehensive Warranty
Get In Touch
Ultramatic NHT Cleaning System Specifications
- 3 standard sizes to suit your needs. Custom models are available with no engineering upcharge.
- All stainless steel construction.
- Internally-mounted components with easy access for service and maintenance.
- Tubular stainless steel support frame.
- High weight capacity.
- Industrial-grade PLC and color touch-screen HMI control system.
- Internally and externally-welded tanks with support bands for superior strength.
- NEMA4X main control enclosure.
- Stainless steel hinging covers.
- 400 series: 13″ x 9″ x 10″ tall
- 800 series: 19″ x 11″ x 10″ tall
- 2400 series: 23″ x 17″ x 12″ tall
- 304 polished stainless steel tubular framing.
- 316L stainless steel tanks & seamless tabletop.
- Color touch-screen HMI with 5 Recipes of Operation.
- High-efficiency drying system with digital controller.
- Closed-cell fluoride/chloride-free insulation.
- NEMA4X control enclosure.
- 316L easy-access external latching panels.
- Internal components easily accessed from the front of the system.
- Industrial-grade controls, no membrane switches.
- Stainless steel hinged cover.
- Water Purification & Deionization Systems for zero residue cleaning results.
- CROSSFIRE Multiple Frequency Ultrasonics.
- Anti-erosion Ultrasonic Coatings to extend transducer life.
- Casters for easy relocation
- On-board instant hot water heater to heat liquids prior to entering the ultrasonic tank.
- Precision detergent injection upgrade to add the precise amount of detergent into the ultrasonic cleaning fluid for each batch processed.
